We build front loading and top loading annealing ovens, fusing kilns, bell kilns, shuttle kilns and car kilns. All ovens are heavily built with square tube steel and angle iron stands and frames. Boxes are made from 16 gauge galvanized sheet metal. Stainless steel and aluminum boxes are also available where corrosion is an issue, such as ovens used with plaster molds. Elements are made from durable Kanthal A1 wire.
OVEN INSULATION OPTIONS
shim
All of our ovens are available with brick and/or high temperature board interior insulation—most ovens are a combination of both. Board offers a more reflective insulating surface with less thermal mass than brick. Board ovens heat up and cool down faster than brick ovens resulting in lower operating costs, however brick is more resistant to abrasion and impact than board.

We often build ovens with modifications to suit our customers’ needs. There are many more configurations than we can list here. We will be happy to discuss various options available to you.
Custom Car Kiln
Color Oven
Color Ovens
Color ovens are built inside 16 gauge galvanized boxes; delivered with wheels.
Typical Color Oven Insulation Lining
WALLS & FLOORS
2.5" 2000° brick insulated with 2" of 1900° board or 2" Super Isol

DOOR
1" high temperature board, insulated with 2" 1900° board or 2" Super Isol.
TLO-CO9—$ 1,950.00
Interior dimensions
13.5" wide x 9" deep x 6.5" tall.
Top loading oven with single hinged door
10 amp, 120 volt oven.

TLO-CO13.5—$ 2,190.00
Interior dimensions
13.5" wide x 13.5" deep x 13.5" tall.
Top loading oven with single hinged door
13 amp, 220 volt oven.

Fusing Kiln 12x36x60
Fusing Ovens

These fusing ovens are like upside down top loaders — the box hinges up instead of the lid. This configuration allows easy access to the work on a table like surface. The interior insulation is high temperature fiber board. This board is a great heat reflector and facilitates rapid heating cycles. The elements are installed in quartz tubes on the ceiling. The quartz tubes prevent element scale falling on the work below. The boxes of these ovens are fabricated from aluminum and all the metal around the openings is heavy stainless steel. Levelers are standard; wheels are optional.
Other sizes available—call for a quote.

Typical Fusing Oven Insulation Lining
FLOOR
2.5" 2000° brick
insulated with 2" of 1900° board

WALLS & CEILING
2" high temperature fiber board
insulated with 2" 1900° board
FO 12x36x60—$ 11,385.00
Interior Dimensions 12" tall x 36" deep x 60" wide

FO 12x28x52—$ 11,110.00
Interior Dimensions 12" tall x 28" deep x 52" wide

FO 12x28x48—$ 10,670.00
Interior Dimensions 12" tall x 28" deep x 48 " wide
Many sizes of fusing kilns are available.
Call for a specific quote.
Sliding Top Oven
Sliding Top Ovens
We designed these ovens to meet the needs of our customers who require an oven with a low overall height when open. Insulation is the same as on our hinge door top loaders.
STO 21.5—$ 11,660.00
Interior Dimensions 12" tall x 36" deep x 60" wide

Other sizes of sliding top ovens are available.
Call for a specific quote.





FLA2 30.5 Annealing Oven

Front Loading Annealing Ovens
The doors on these ovens are hung on heavy duty adjustable hinges and held closed by an adjustable lever action latch. Doors seal tight with a replaceable tadpole gasket.
Typical Front Loading Oven Insulation
WALLS
2.5" 2000° brick insulated with 3" of 1900° board or 1" high temperature fiberboard backed w/ 4" Super Isol.

FLOOR
2.5" 2000° brick insulated with 2" of 1900° board or 2" Super Isol.

CEILING
1" Maronite or 1" high temperature fiberboard insulated w/ 4" of 1900° board or 4" Super Isol insulated with 4" of 1900° board.

DOOR
1" high temperature fiber board insulated with 3" of 1900° board or 4" Super Isol.
FLA1 21.5—$ 8,635.00
Interior dimensions
21.5" tall x 24.5" deep x 27" wide
Front loading with single hinged door
30 amp, 220 volt oven

FLA1 26—$ 8,855.00
Interior dimensions are
26" tall x 24.5" deep x 27" wide
Front loading with single hinged door
30 amp, 220 volt oven

FLA1 30.5—$ 9,174.00
Interior dimensions
30.5" tall x 24.5" deep x 27" wide
Front loading with single hinged door
30 amp, 220 volt oven

FLA2 21.5—$ 11,330.00
Interior dimensions
21.5" tall x 24.5" deep x 58" wide
Front loading annealer with two hinged doors
45 amp, 220 volt oven

FLA2 21.5D—$ 14,330.00
Interior dimensions
21.5" tall x 40" deep x 75" wide
Front loading annealer with two hinged doors
80 amp, 220 volt oven

FLA2 26—$ 11,880.00
Interior dimensions
26" tall x 24.5" deep x 58" wide
Front loading with two hinged doors
60 amp, 220 volt oven

FLA2 26D—$ 16,995.00
Interior dimensions
26" tall x 40" deep x 75" wide
Front loading with two hinged doors
80 amp, 220 volt oven

FLA2 30.5—$ 12,485.00
Interior dimensions
30.5" tall x 24.5" deep x 58" wide
Front loading annealer with two hinged doors
70 amp, 220 volt oven

FLA2 30.5D—$ 19,650.00
Interior dimensions
30.5" tall x 40" deep x 75" wide
Front loading annealer with two hinged doors
800 amp, 220 volt oven
shim

Prices for all ovens include door switch(es) to disconnect power when doors open.

Custom Car Kiln

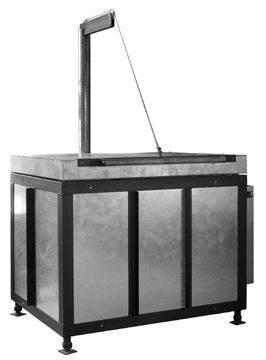

Top Loading Ovens
Top loading ovens can be supplied with lining suitable to 1000° F for annealing or high temperature lining suitable for slumping and fusing operations. Two door counterweight configurations are available—springs or cable and weight. Ovens come with standard levelers; wheels are available.

shim

These top loading ovens are also perfect for many slumping and casting operations.
shim
Typical Top Loading Oven Insulation Lining
shim
Walls & Floors
2.5" 2,000° brick insulated with 3" of 1900° board or 1" high temperature board backed with 4" Super Isol.

Door
1" high temperature fiber board, insulated with 4" 1900 board or 4" Super Isol.

Oven prices include switches to disconnect power when doors open. Pricing does not include temperature controllers.

shim

TLO 27—$ 8,855.00
Interior dimension
27" tall x 27" deep x 40" wide
Top loading with single counter weighted door
45 amp, 220 volt oven


TLO 31—$ 13,090.00
Interior dimensions
31.5" tall x 31.5" deep x 45" wide
Top loading with single counter weighted door
70 amp, 220 volt oven

TLO 9 x 30 x 60—$ 10,868.00
Interior dimensions 30" tall x 9" deep x 60" wide
Top loading oven with single counter-weighted door
45 amp, 220 volt

Oven Controls
There are many temperature controls and systems available, and we will install or configure your oven for any control you would like. We most commonly install and use Digitry and Partlow controls. Most glass workers are familiar with the Digitries. We have used Partlows for 20 years and have found them to be reliable and easy to use as well. Partlow also has excellent customer support and warranty backup.
See Combustion Control for temperature control options & pricing.
